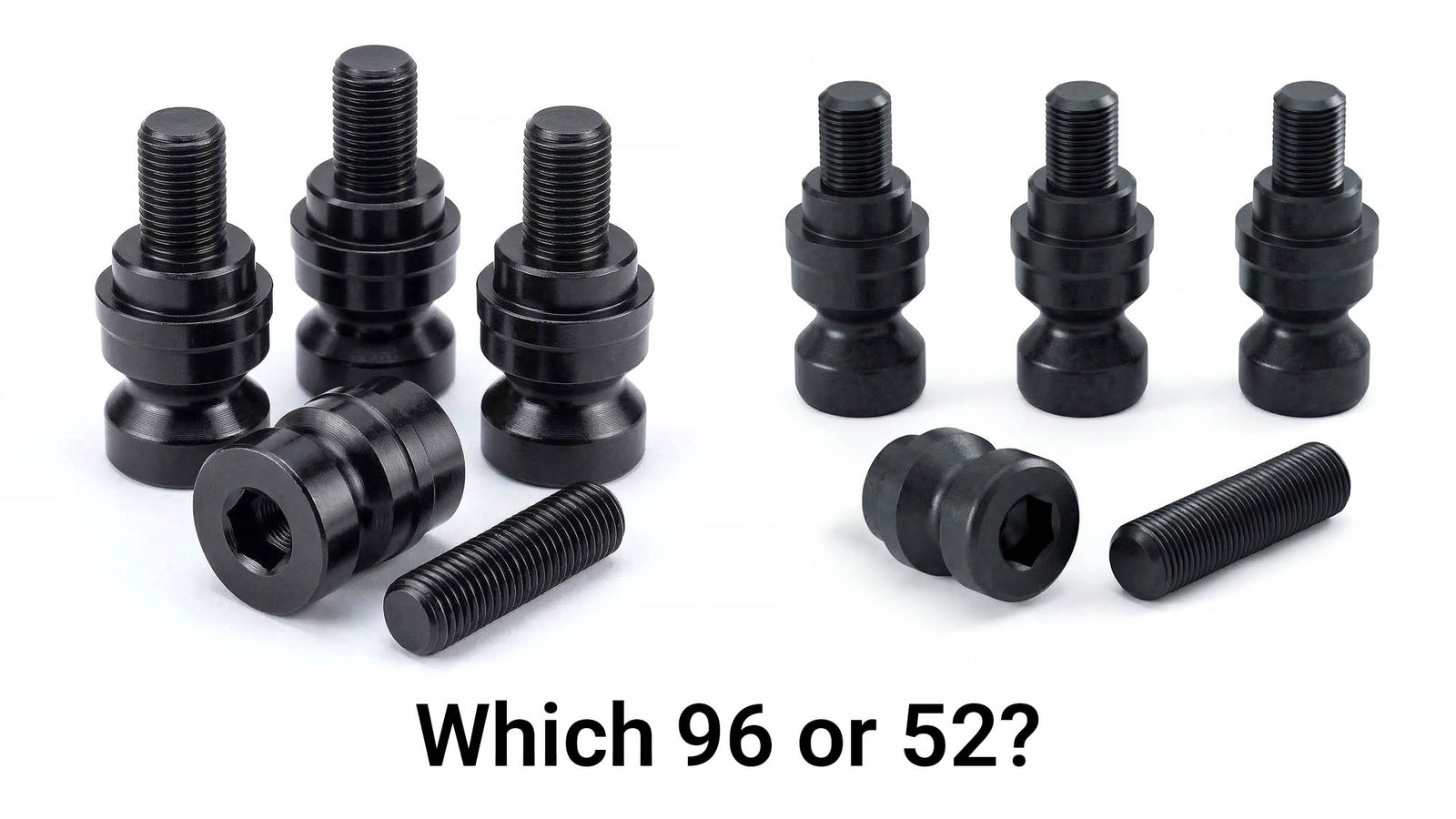

Why 96 and 52 zero-point systems aren't interchangeable
If you're setting up a zero-point workholding system on a CNC, you've probably considered "96 vs 52." And if you've gone looking for compatible clamping studs, the options are either expensive OEM hardware or vague third-party listings with no real specs.
This post breaks down what these two systems actually are, why they're not interchangeable between brands despite sharing the same bolt pattern spacing, and what to look for when buying studs.
What the numbers actually mean
The 96 and 52 designations refer to the center-to-center spacing of the receiver holes in the fixture plate or pallet. It's a grid dimension, not a stud size.
Locking mechanisms vary by manufacturer. Some use wedge-lock geometry, others use cams, ball-lock designs, or pneumatic actuation. But the pull-down principle is the same: the stud is drawn into the receiver and held with high clamping force independent of thread tension. This is what makes zero-point systems repeatable to within microns rather than the 0.1mm+ you'd get from a standard vise setup.
| System | Pattern Spacing | Stud Body Diameter | Locking Mechanism |
|---|---|---|---|
| Lang Quick-Point® | 52 / 96mm | 16mm (52) 20mm (96) |
Wedge-lock, mechanical |
| 5th Axis RockLock™ | 52 / 96mm | 16mm (52) 20mm (96) |
Pull-stud, mechanical |
| Kurt DockLock | 96mm | 20mm | Hydraulic or pneumatic actuation |
| HWR SOLIDPoint | 52 / 96mm | 16mm (52) 20mm (96) |
Slider mechanism, mechanical. Fully compatible with Lang QP |
| Royal Z-Lock | 96mm | — | Manual actuation |
| Jergens ZPS | 52 / 96mm | — | Various (pull studs) |
The compatibility problem nobody talks about
Here's where people get burned: 96mm bolt pattern spacing is shared by Lang Quick-Point, 5th Axis RockLock, and Kurt DockLock systems. Same hole spacing. Different internal locking geometry.
That means a stud designed for a Lang Quick-Point receiver will not function correctly in a 5th Axis RockLock or Kurt DockLock receiver, even though the bolt pattern looks identical on paper. The wedge-lock profiles are different. The engagement angles are different. Forcing incompatible hardware into a precision receiver is a good way to damage both and not properly seat your fixturing.
If you're buying third-party studs, you need to know which receiver system you actually have, not just the grid spacing.
Our 96mm and 52mm studs are compatible with Lang Quick-Point® systems. They are not compatible with 5th Axis RockLock or Kurt DockLock.
PDX CNC: About 25% less
Populating a new machine with workholding adds up fast. If you're running a 52 plate with 10-pallet positions, you're looking at $700+ just in studs at OEM pricing, $800 if 96.
We developed these as a direct alternative. Same hardened alloy steel (20CrMnTi, HRC 55-58), same wedge-lock profile (for Lang QP®), precision ground to ±0.005mm. The finish is black oxide. They're manufactured to our specs and ship from our shop in Portland. No worries about tariffs, the price is the price, and we ship same day, have it next day typically.
The 96mm studs run about 25% less than OEM. The 52mm studs are priced lower still.
Specs at a Glance
96mm Clamping Studs
- Body diameter: 20mm
- Material: 20CrMnTi alloy steel
- Hardness: HRC 55-58
- Finish: Black Oxide
- Precision ground: ±0.005mm
- Includes threaded rod for installation
- Compatible with: Lang Quick-Point®
52mm Clamping Studs
- Body diameter: 16mm
- Material: 20CrMnTi alloy steel
- Hardness: HRC 55-58
- Finish: Black Oxide
- Precision ground: ±0.005mm
- Includes threaded rod for installation
- Compatible with: Lang Quick-Point®
A note on material
We get asked about stainless steel studs occasionally. The answer is no. Stainless galls under the clamping loads these systems generate, and it's softer than what you want for a precision ground contact surface. Hardened alloy steel is the right call here, and it's what every serious OEM uses. Stainless steel is too much of a chance for this use case in our opinion.
Where to buy
Both sizes are in stock and ship from Portland.
If you're not sure which system you have, check your receiver plate documentation or reach out before ordering. Fitment matters with zero-point hardware.
